SAAS Silicone Intercooler Pipe RH Cold for Triton/Pajero 2.4L 2015 - On Blue

Our 5 Ply Silicone intercooler hoses are the ideal replacement/upgrade for factory or OE style rubber hoses and come supplied with our dual bead stainless hose clamps

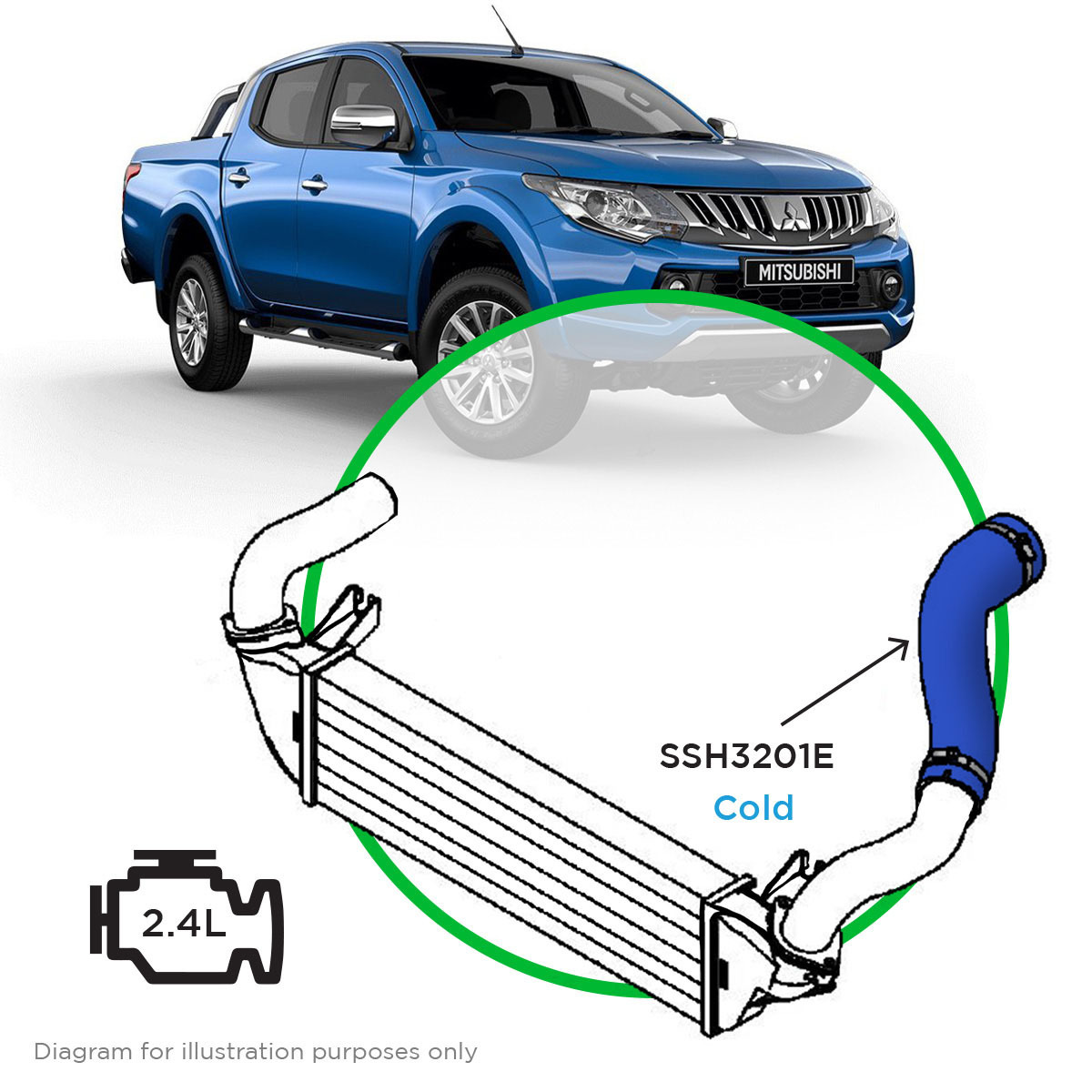

The SAAS SSH3201E is designed to replace the factory intercooler to throttle body cold pipe return (refer to layout diagram).

The hose also features our new Stainless Dual Bead clamps which provide greater clamping pressure whilst mitigating the risk of cutting into your hose. Don’t be caught out with a split rubber hose roadside – upgrade to SAAS Silicone hoses today.

FVMQ Oil Resistance: FVMQ Fluorosilicones offer the highest level of oil resistance amongst the most common elastomers and are a popular solution within the aviation industry.

Features:

  • Smooth Form 5 Ply polyester reinforced silicone
  • Red FMVQ Fluorosilicone lining providing greater resistance to oil mist and EGR by-products (see note)
  • Stable operating temp from -50°C to +200°C
  • 4:1 burst pressures at safe working loads
  • Stainless Dual Bead Hose Clamps included
  • Designed to be used with Factory intercooler
  • 6mm wall thickness
  • Blue finish to elevate your under-bonnet aesthetic

Specifications:

  • Wall Thickness: 6mm
  • ID 1: 59mm
  • ID 2: 67mm
  • Finish: Blue
  • Turbo Diesel: 4N15 2.4L
  • Liters: 2.4L

Suitable for:

  • Mitsubishi Triton MQ-MR (From 2015 - On)
  • Mitsubishi Pajero QE/QF (From 2015 - 2019) 2.4L
SKU SSH3201E
Barcode # 9348391031694
Brand SAAS
Shipping Weight 0.8000kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.530m
