SAAS Silicone Intercooler 3 Pipe Kit for Ranger / BT50 2.2L 110kW Black

Our 5 Ply Silicone intercooler hoses are the ideal replacement/upgrade for factory or OE style rubber hoses and come supplied with our dual bead stainless hose clamps

The SAAS SSH2205-KIT is designed to replace the factory rubber hoses with a higher grade silicone and remove a potential point of failure, particularly as your vehicle ages.

The kit also features our new Stainless Dual Bead clamps which provide greater clamping pressure whilst mitigating the risk of cutting into your hose. Don't be caught out with a split rubber hose roadside - upgrade to SAAS Silicone hoses today.

FVMQ Oil Resistance: FVMQ Fluorosilicones offer the highest level of oil resistance amongst the most common elastomers and are a popular solution within the aviation industry.

Fitment notes:

Please check your HOT (turbo) side before ordering.

If the Hot side longer pipe diameter has 55mm both ends, use SSH2205-KIT (SSH2205E-KIT in blue)

If the Hot side longer pipe diameter has 55mm/58mm ends, use SSH2201-KIT (SSH2201E-KIT in blue)

Features:

• Smooth Form 5 Ply polyester reinforced silicone
• Red FMVQ Fluorosilicone lining providing greater resistance to oil mist and EGR by-products (see note)
• Stable operating temp from -50°C to +200°C
• 4:1 burst pressures at safe working loads
• Stainless Dual Bead Hose Clamps included
• Designed to be used with Factory intercooler
• Blue finish to elevate your under-bonnet aesthetic
• 6mm wall thickness

Specifications:

• Power: 110kW
• Wall Thickness: 6mm
• Finish: Black

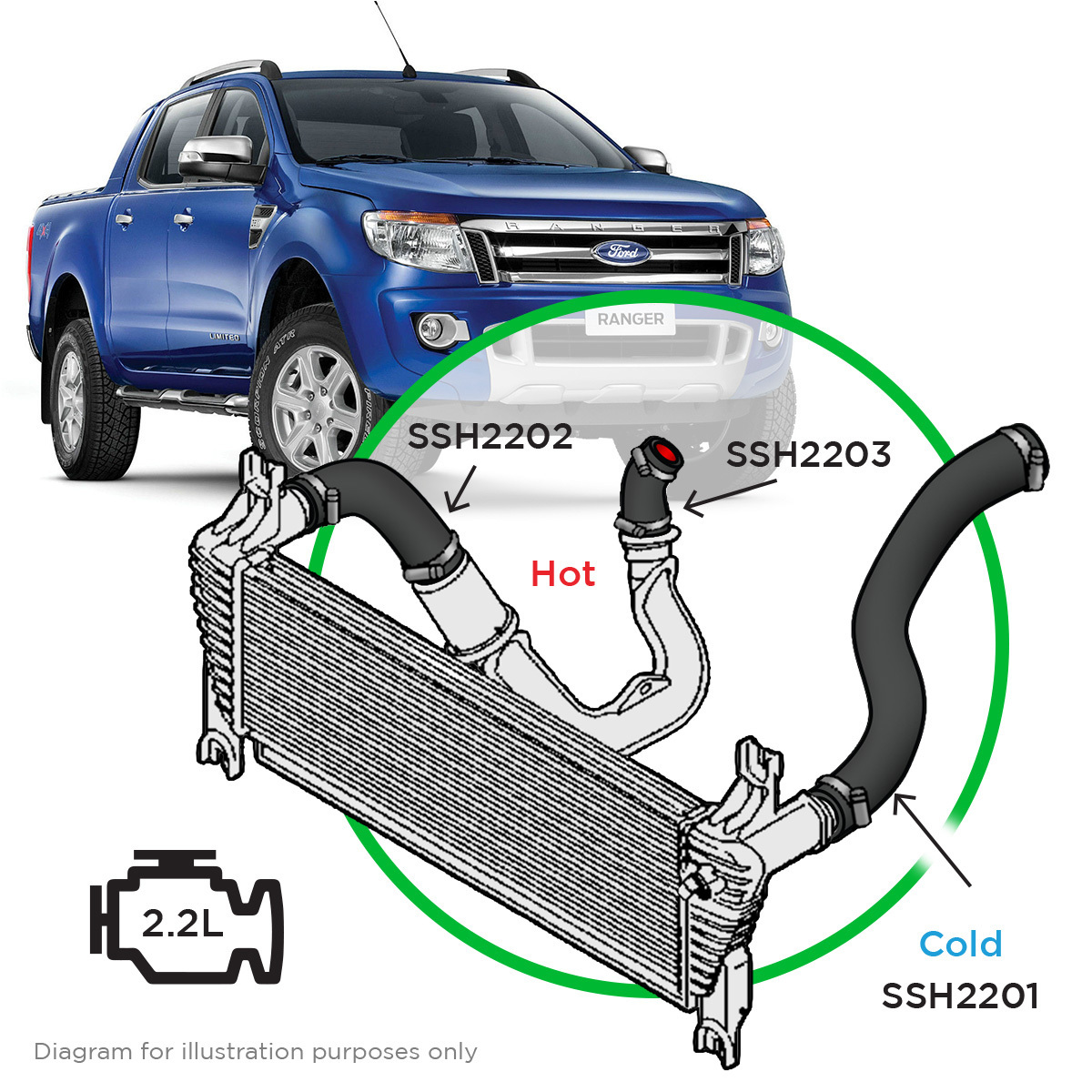

• SSH2201
  • Top Cold Pipe. ID 1: 55mm ID 2: 60mm
• SSH2202
  • Hot Side Long Pipe. ID: 55mm
• SSH2203
  • Hot Side Short Pipe. ID 1: 39mm ID 2: 54mm

Suitable for:

• Ford Ranger PXI, PXII, PXIII (From Sep 2011 -  Mar 2022)
• Mazda BT50 B22 (From Nov 2011 - Jul 2020)
