PRODUCT INFORMATION

SSH2202E-KIT Blue Silicone Intercooler 2 Piece Hose and Clamp Kit suit Ford Ranger 2.2L 118KW

Suits:

2.2L 118KW

Ford Ranger PXII, PXIII 2015 - 2022

Our 5 Ply Silicone intercooler hoses are the ideal replacement/upgrade for factory or OE style rubber hoses and come supplied with our dual bead stainless hose clamps



The SAAS SSH2202E-KIT is designed to replace the factory rubber hoses with a higher-grade silicone and remove a potential point of failure, particularly as your vehicle ages.



The kit also features our new Stainless Dual Bead clamps which provide greater clamping pressure whilst mitigating the risk of cutting into your hose. Don't be caught out with a split rubber hose roadside - upgrade to SAAS Silicone hoses today.



FVMQ Oil Resistance: FVMQ Fluorosilicones offer the highest level of oil resistance amongst the most common elastomers and are a popular solution within the aviation industry



Features

Smooth Form 5 Ply polyester reinforced silicone

6mm wall thickness

Red FMVQ Fluorosilicone lining providing greater resistance to oil mist and EGR by-products (see note)

Blue finish to elevate your under-bonnet aesthetic

Stable operating temp from -50°C to +200°C

4:1 burst pressures at safe working loads

4 x Stainless Dual Bead Hose Clamps included

Designed to be used with Factory intercooler

All hoses available either individually or as a complete kit

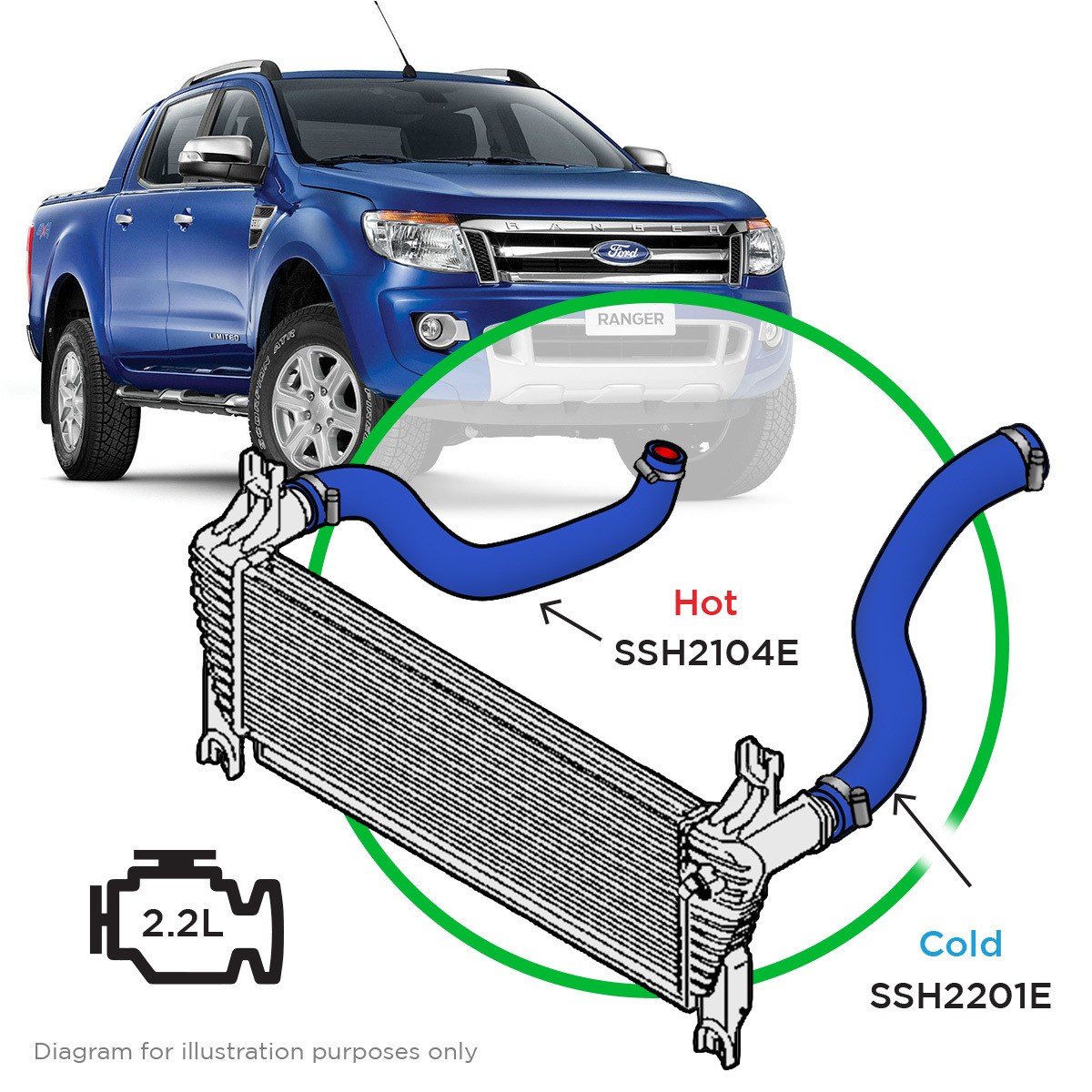

SSH2201E - Top Side Cold Pipe. ID 1: 55mm. ID 2: 60mm

SSH2104E - Hot Side Long Pipe

SKU SSH2202E-KIT
Barcode # 9348391031670
Brand SAAS
Shipping Weight 2.0000kg
Shipping Width 0.250m
Shipping Height 0.210m
Shipping Length 0.580m
