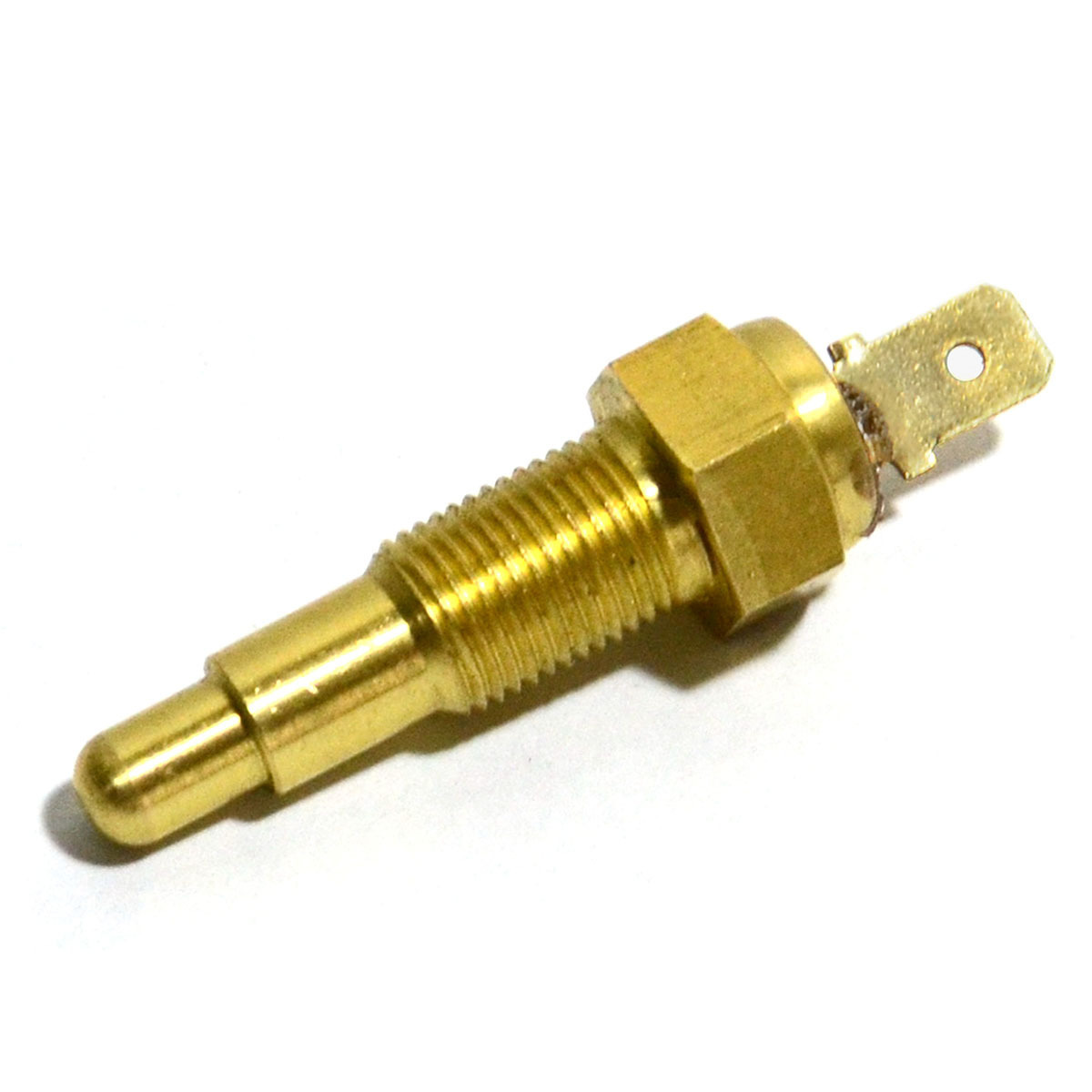

SFC103 - Thermo Fan Controller Switch Replacement sender to suit the following Thermo Fan Controllers: SFC1001 - Single Thermo Fan Controller Kit SFC1002 - Dual Thermo Fan Controller Kit Fitting Notes: Switch thread size is 1/8-27 NPT Switch turns on 85° C / off 76°C Maximum installed switch depth - 31mm In most engine cooling system applications, coolant travels through the block, up in to the cylinder head(s), and out of the engine at the thermostat housing. From there, it passes to the radiator to be cooled. Ideally the temperature probe should be plumbed into the system where the coolant is hottest - generally, the thermostat housing, in the coolant passages adjacent to it, or in the water jacket of the cylinder head(s). You can use a SAAS brass adaptor to tap into an available coolant jacket port, or in the absence of any of these alternatives, splice into your top radiator hose using a SAAS Water Temp Adaptor fitting.
SKU SFC103
Barcode # 9348391020582
Brand SAAS
Shipping Weight 0.1500kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
Shipping Cubic 0.000125000m3
Unit Of Measure ea
