SAAS In-Dash Instruments Speedometer

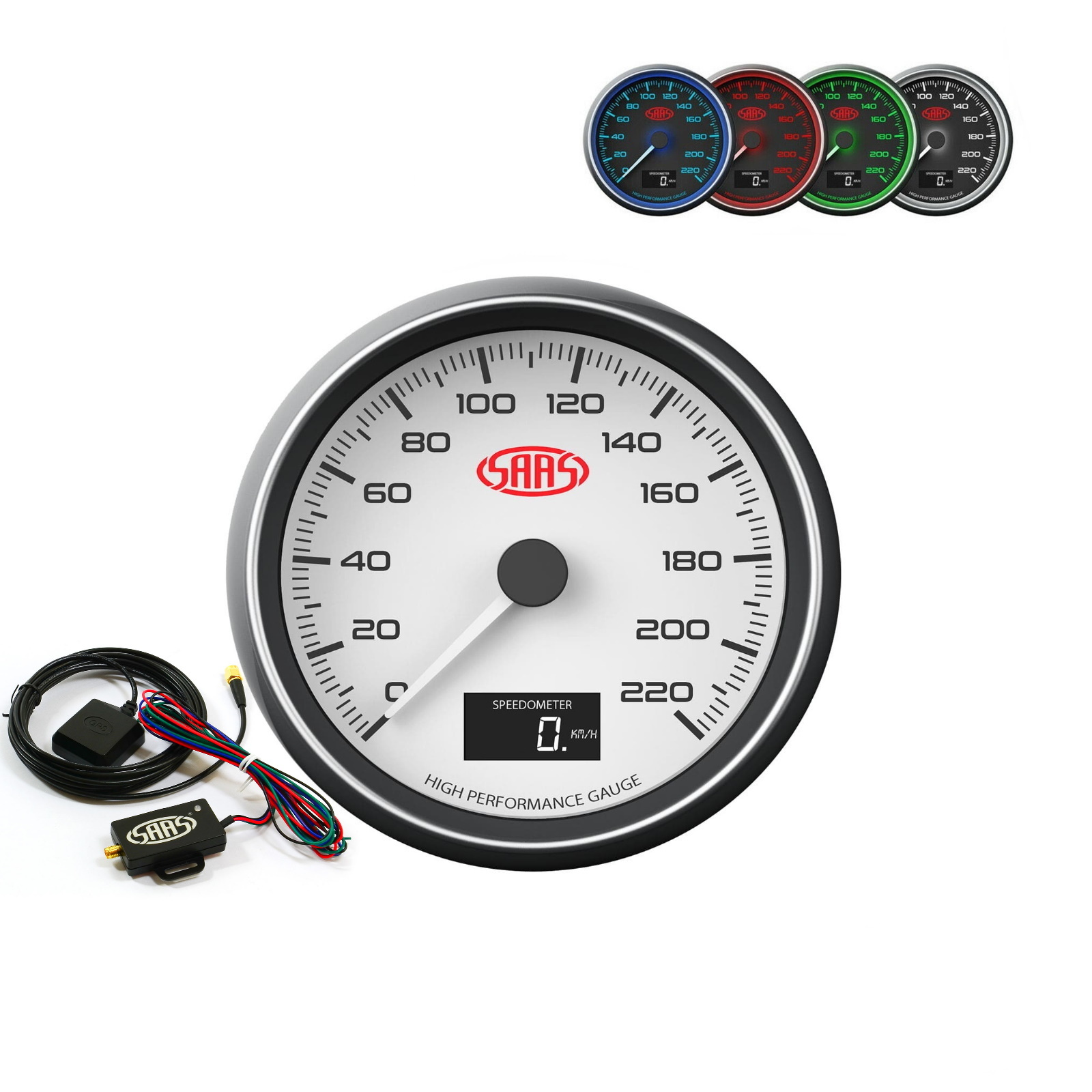

SG31632 Digital/Analogue Speedometer 0-220 KPH 3 1/2" In Dash White

Please Note: (Front of Outer Face Rim = 90mm - Barrell Size is 80mm)

Features:

• Separate TRIP (A) and TRIP (B) Odometer
• Maximum (Peak) Speed Recall
• Built-In Adjustable Speed Alert
• Read Speed in either KPH or MPH
• Transfer your vehicle's original odometer reading onto the digital display
• Multi-Vehicle Pulse Rate Selector input that works with all electronic speed generators (optional parts may be required for cable driven speedometers)
• OLED Multifunction Display window shows all user functions and setup functions
• Advanced Multi-Colour LED Lighting with 5 levels of dimming for each mode. Available colours include Red, Green, Blue, White
• Adjustable Needle Viewing Angle. Get a 100% read on your analogue needle

In-Dash Installation:
Diameter - 89mm / 3 1/2"
Range 0-220 KPH/MPH
Lighting - LED Multi - select 4 Colour
Type - Electronic
Bracket - SG31015
Loom - SG3163
Fitting Instructions - Supplied With Gauge & Available Upon Request Prior To Purchase

Includes
SG31650 Speedometer GPS Sensor and Antenna

Features:

• Direct match to our SG31631/SG31632 in-dash speedometers
• Super fast and easy install (when mated to SAAS Speedometers)
• High Accuracy with 0.2% deviation (cable drive speedos are typically 3-5%)
• Can actually mate to any Speedometer, Odometer or Tachograph

• Velocity < 0.06m/sec (~ 0.22 kph)
• Altitude to within 10m
• Horizontal to within 5m

• Anti GPS Drift technology
• Shockproof and circuit protected
• Pulse compensation for when driving through tunnels (5000 pulses per km)
• Low current draw
• Fast satellite acquisition time

• First time setup < 60sec
• Temporary power loss < 13 sec
• Loss of satellite lock < 2sec

Cable Assignment:

• Red: Power + DC8~32V (may require resistor in higher V installs)
• Black: Ground/Earth
• Green: Speed Pulse Signal +'ve output
• Blue: Speed Pulse Signal -'ve outpu
