PRODUCT INFORMATION

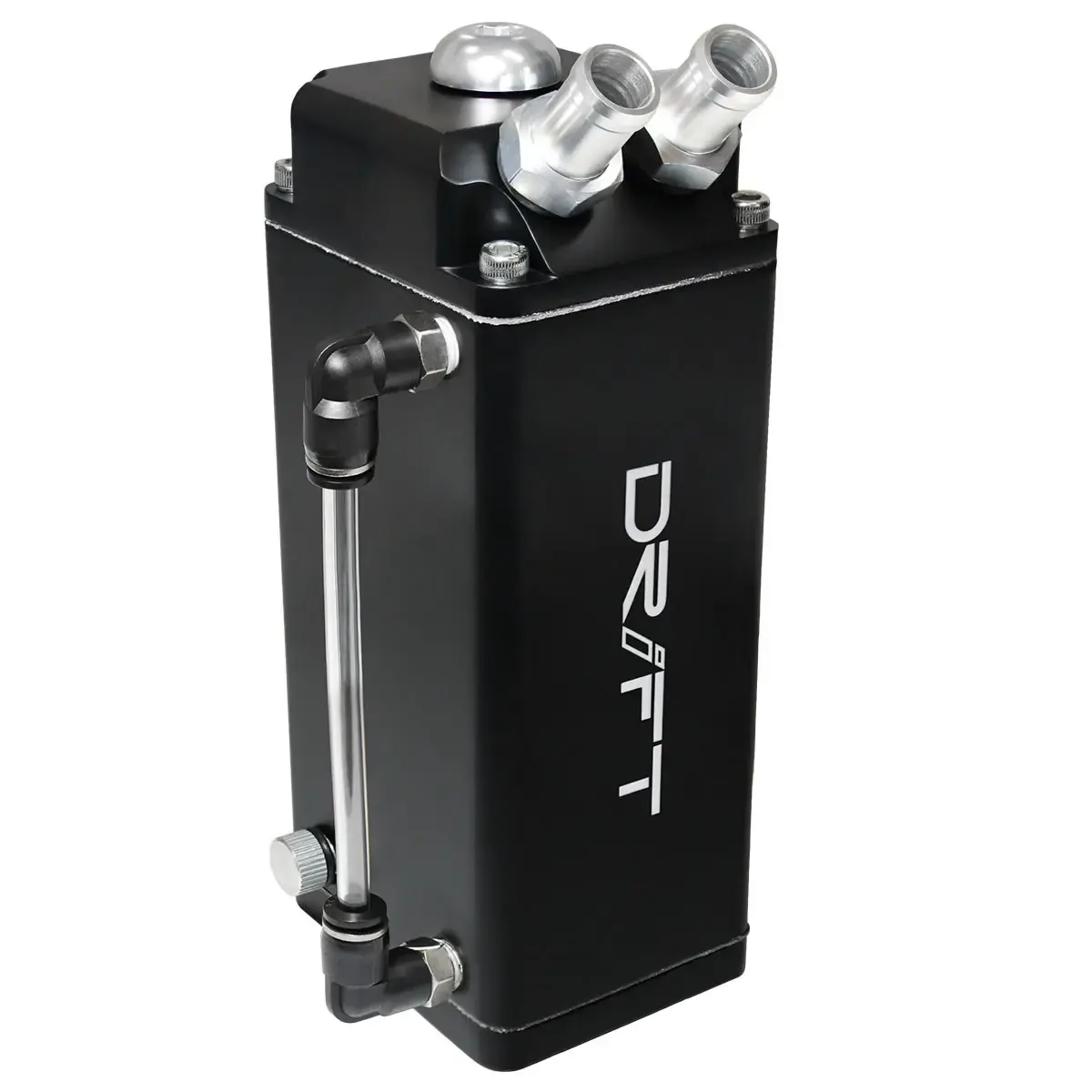

D1-OCT-B Oil Catch Tank - Black 600ml Rectangle

This functional oil catch tank is a universal fitment that can be used to trap excess crankcase blow-by and prevent fuming back into the intake system. Maintenance can be made easier by adding a drain kit (available separately) to the base of the tank, and capacity can be checked using the side mounted view pipe.

In off-raod applications, you can provide filtered venting with the addition of a SAAS mesh breather.

If you need a tank with greater filtering ability to prevent contaminated oil from being ingested via your intake system, consider our range of baffled catch tanks.

Features:

Universal Fitment

600cc Capacity

Suits both Petrol and Diesel engines.

External level indicator provides quick view of tank fill level

Non specific flow - either fitting can act as either an inlet or outlet

Non baffled - catchment reservoir only.

Drainage plug at base of can for easy emptying - optional PD1001 drain kit available.

Supplied with 3 different size hose barbs.

Barb thread size M16 X 1.5

2 x 10mm ( 3/8")

2 x 14mm (9/16")

1 x 12mm (1/2") to allow fitment of optional breather
